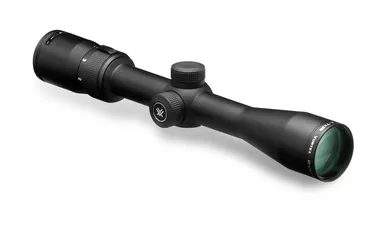

The Diamondback – loaded with features! First, the solid one-piece aircraft-grade aluminum alloy construction makes the Diamondback riflescope virtually indestructible and highly resistant to magnum recoil. Argon purging puts waterproof and fogproof performance on the agenda, and advanced fully multi-coated optics raise an eyebrow when crystal clear, tack-sharp images appear in the crosshairs. Look for all this and more in a riflescope you’d expect to cost quite a bit more-but doesn’t. We can live with that.
Diamondback 2-7×35 Rimfire Dimensions (in inches)
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 11.6 | 1.83 | 2.1 | 5.16 | 3.35 | 3.1 |
| Heights | |
|---|---|
| H1 | H2 |
| 1.72 | 1.69 |
Included in the Box
- Removable lens covers
- Lens cloth
Magnification 2-7xObjective Lens Diameter 35 mmEye Relief 3.1 inchesField of View 64.3-19.3 ft/100 ydsTube Size 1 inchTurret Style CappedAdjustment Graduation 1/4 MOATravel Per Rotation 15 MOAMax Elevation Adjustment 100 MOAMax Windage Adjustment 100 MOAParallax Setting 50 yardsLength 11.6 inchesWeight 14.2 ozProduct Manual (PDF) DownloadParts Diagram (PDF) Download
