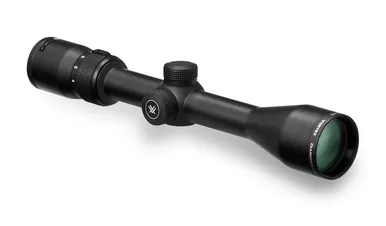

The Diamondback – loaded with features! First, the solid one-piece aircraft-grade aluminum alloy construction makes the Diamondback riflescope virtually indestructible and highly resistant to magnum recoil. Argon purging puts waterproof and fogproof performance on the agenda, and advanced fully multi-coated optics raise an eyebrow when crystal clear, tack-sharp images appear in the crosshairs. Look for all this and more in a riflescope you’d expect to cost quite a bit more-but doesn’t. We can live with that.
Diamondback 4-12×40 Dimensions (in inches)
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 12.0 | 2.46 | 2.15 | 5.85 | 3.0 | 3.1 |
| Heights | |
|---|---|
| H1 | H2 |
| 1.89 | 1.69 |
Included in the Box
- Removable lens covers
- Lens cloth
Magnification 4-12xObjective Lens Diameter 40 mmEye Relief 3.1 inchesField of View 32.4-11.3 ft/100 ydsTube Size 1 inchTurret Style CappedAdjustment Graduation 1/4 MOATravel Per Rotation 15 MOAMax Elevation Adjustment 60 MOAMax Windage Adjustment 60 MOAParallax Setting 100 yardsLength 12 inchesWeight 14.6 ozProduct Manual (PDF) DownloadReticle Manual (PDF) DownloadParts Diagram (PDF) Download
